Arragons

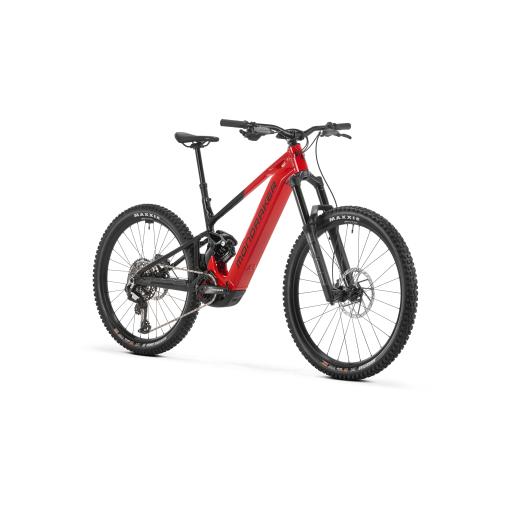

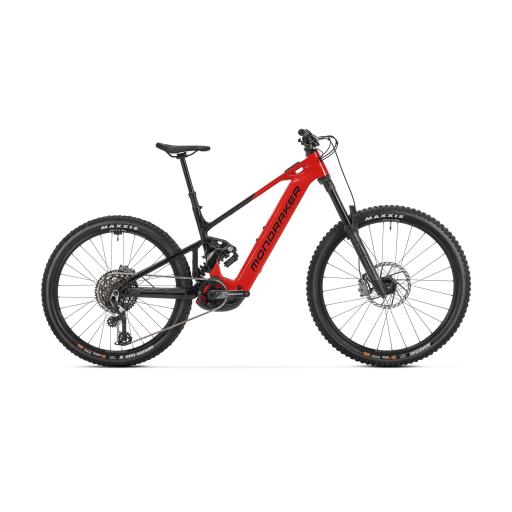

Mondraker Level R Chili Red

010.26346

£5999.00

M/L

Out of stock.



  • Frame

    Level 6061 Alloy Stealth Evo, Updated Zero Suspension System, Mullet, 170mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, exclusive plastic motor covers

    Sizes

    S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

    Rear shock

    RockShox Vivid Coil base, 205x65mm. Settings: external bottom out, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings

    Shock settings

    C26 compression, R23 rebound. Spring rate: S size 350 lbs, M size 400 lbs, ML size 450 lbs, L size 500 lbs, XL size 500 lbs

    Fork

    RockShox ZEB Select Charger RC 29, 180mm, e-bike approved, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, low-speed rebound, air preload

    Headset

    Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º

    Stem

    Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore

    Handlebar

    Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.

    Grips

    Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

    Seatpost

    Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)

    Saddle

    FIZIK Terra Aidon X5 145mm

    Front brake

    Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

    Rear brake

    Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

    Brake lever

    Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust

    Rims

    e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear

  • Spokes

    e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers

    Front hub

    e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

    Rear hub

    e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG Freehub

    Front tire

    Maxxis Assegai 29x2.6WT, tubeless ready, 3C Maxx Grip compound, DD protection, 120x2TPI, folding bead

    Rear tire

    Maxxis Minion DHR II 27’5x2.6 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead

    Crankset

    Race Face Aeffect ebike, All sizes: 160mm

    Rings

    Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55

    Chain

    Sram 70 Eagle T-Type, 12s, Powerlock

    Rear derrailleur

    Sram 90 Eagle T-Type, 12s

    Shift levers

    Sram 90 Eagle, 12s, T-Type Actuation, single click

    Casette

    Sram XS-1270, 10-52T, T-Type, 12s

    Weight

    26,7 kg

    Display

    Purion 400 / Bosch Mini Remote / Bosch System Controller

    Motor

    Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)

    Battery

    Bosch Powertube 800Wh
