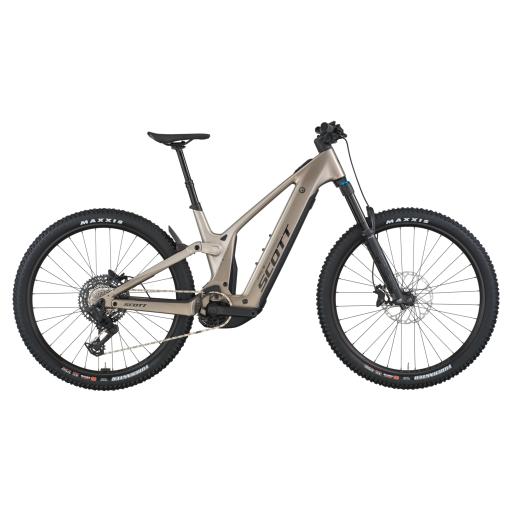

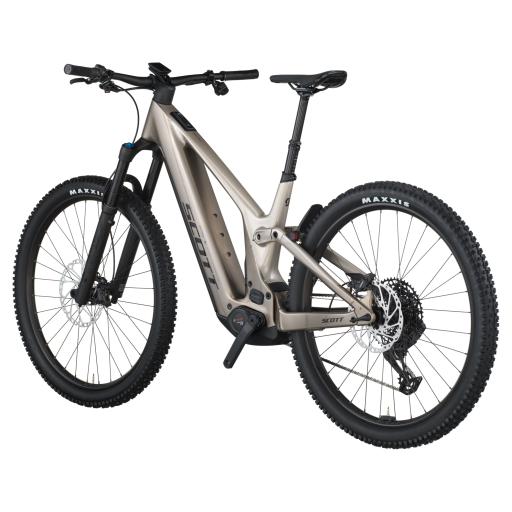

SCOTT Patron 910 Bike

The best of all worlds. Do it all with the Patron eRIDE 910.
Ready to tackle any climb with ease and scream back down with sure footed and confidence inspiring handling. 150mm of front and rear travel gobbles up the terrain while our TracLoc technology allows you to adjust the suspension on the fly to give you an efficient ride in all conditions.

Careful engineering and design makes this E-Bike a dream to work on with clever integration, easily removable battery and great access to the shock. The cover keeps everything clean, reducing service intervals.

Being an E-Bike, the Bosch CX drive unit provides up to 100Nm of power while the 800Wh battery gives you the range to conquer any ride from time crunched hour of power to all day epics. The decision is yours.

• Travel

  Front: 150mm, Rear: 150mm

• Fork

  FOX 36 Rhythm Air, eMTB+, Grip, Comp & Reb Adj., QR Axle 15x110mm axle
  44mm offset, tapered steerer, 150mm travel

• Rear Shock

  FOX Float EVOL Trunnion
  3 modes, Lockout-Trail-Descend
  DPS, Reb. Adj.
  Travel 150mm, 185x55mm

• Remote System

  SCOTT TracLoc 2 Technology
  Suspension & Dropper Remote
  3 modes

• Drive Unit

  Bosch Performance Line CX (BDU384Y)
  EU: 25kmh, INT: 20mph

• Battery

  PowerTube 800Wh

• Display

  Bosch System Controller, Mini Remote & Kiox 300

• Charger

  4A Charger

• Rear Derailleur

  SRAM S1000 Eagle AXS Transmission 12 Speed
  Wireless Electronic Shift System

• Shifters

  SRAM AXS Rocker Pod Controller

• Crankset

  FSA Alloy

• Chainguide

  e*thirteen, e*spec Slider

• Chainring

  SCOTT custom spider, SRAM Eagle Transmission 34T chainring

• Chain

  SRAM CN GX Eagle Transmission

• Cassette

  SRAM Eagle XS 1270 Transmission 10-52

• Brakes

  Shimano Deore M6120 4-Piston Disc

• Rotor

  Front: SM-RT64 CL 220mm, Rear: SM-RT64 CL 203mm

• Handlebar

  Syncros Hixon 2.0 Alloy 6061
  Size S & M 15mm rise, Size L & XL 25mm rise, back sweep 8°, 780mm
  Syncros Performance XC lock-on grips

• H'stem

  Syncros AM 2.0
  Syncros Cable Integration System
  4° rise, 6061 Alloy, 31.8mm, 1 1/8"

• Seatpost

  Syncros Duncan Dropper Post 2.5
  31.6mm, S size 125mm, M size 150mm, L size 170mm, XL size 200mm

• Seat

  Syncros Tofino-E 2.0 Regular

• Headset

  Syncros - Acros Angle adjust & Cable Routing HS System
  Stainless, +-0.6° head angle adjustment
  ZS56/28.6 – ZS56/40 MTB

• Hub (Front)

  Formula CL-811, 15x110mm

• Hub (Rear)

  Formula ECT-148S, Boost 148x12mm

• Spokes

  Stainless Black

• Rims

  Syncros MD30, 32H, 30mm, Pin Joint
  Tubeless ready

• Front Tire

  Maxxis Forekaster 29x2.6"
  120TPI Foldable Bead
  EXO, TR Tubeless ready
  3C Maxx Terra

• Rear Tire

  Maxxis Forekaster 29x2.6"
  120TPI Foldable Bead
  EXO, TR Tubeless ready
  3C Maxx Terra

• Lights

  Syncros integrated rear fender light
  Front Light Cable pre-installed

• Extras

  SRAM AXS Extension Cord
  Kickstand mount

• Approx weight in KG

  24.4

• Approx weight in LBS

  53.79

• Max. System Weight

  130kg
  The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
